Getting the VIN number

In this first challenge, your goal is to retrieve the car’s VIN number by sending a diagnostic request over the CAN Bus.

Modern cars store the VIN (Vehicle Identification Number) inside an ECU, and diagnostic tools can read it by sending a special request. You have to do the same, but using Doggie to send the request and listen for the response, just like a mechanic (or an attacker!) would.

Hints

What is the VIN?

The Vehicle Identification Number (VIN) is a unique 17-character identifier every car has. In real life, mechanics and dealerships use diagnostic tools to read it through the OBD2 port by sending a standardized request.

What protocol is used to retrieve the VIN?

While normal CAN messages are short (up to 8 bytes), some diagnostics need to exchange longer data, like the VIN. To achieve this, the automotive world utilizes UDS (Unified Diagnostic Services, ISO 14229), which runs over ISO-TP (ISO 15765-2), a protocol designed to send multi-frame messages over CAN.

With ISO-TP, the VIN ECU can:

  • Receive a diagnostic request from the tester (your tool)
  • Send back a multi-frame response containing the VIN

Which ECUs are involved?

In our simulator, there’s a special VIN ECU that:

  • Listens for ISO-TP requests sent to CAN ID 0x7E8
  • Replies with the VIN using ISO-TP

You act as the tester, using CAN ID 0x7DF.

Linux tools you’ll use:

To interact over ISO-TP, you can use two powerful tools from can-utils:

  • isotpsend: to send a diagnostic request
  • isotprecv: to listen for the diagnostic response

They set up a virtual ISO-TP link over the physical CAN interface (your Doggie).

Diagnostic request details:

The UDS protocol has a series of services and parameter IDs. To get the VIN, you can use:

  • Service 09: Request Vehicle Information
  • PID 02: VIN

So, the request payload becomes: 09 02 (hex). In a real scan tool, this would be built automatically—but here you’ll craft and send it manually to understand what happens behind the scenes.

VIN Messages

Solution

Start listening for the VIN ECU response

Open a terminal and run:

isotprecv -s 7DF -d 7E8 -p 8:8 -l doggie

Where the arguments have the following meaning:

  • -s 7DF: source (tester’s) CAN ID
  • -d 7E8: destination (VIN ECU’s) CAN ID
  • -p 8:8: padding config (common ISO-TP setting)
  • -l: listen mode (prints raw response)

Send the diagnostic request

In another terminal, send the request:

echo "09 02" | isotpsend -s 7DF -d 7E8 -p 8:8 doggie

This sends a VIN request to the VIN ECU.

See the response

The isotprecv terminal should print something like:

49 02 01 57 58 30 58 58 58 58 58 58 58 58 58 58 58

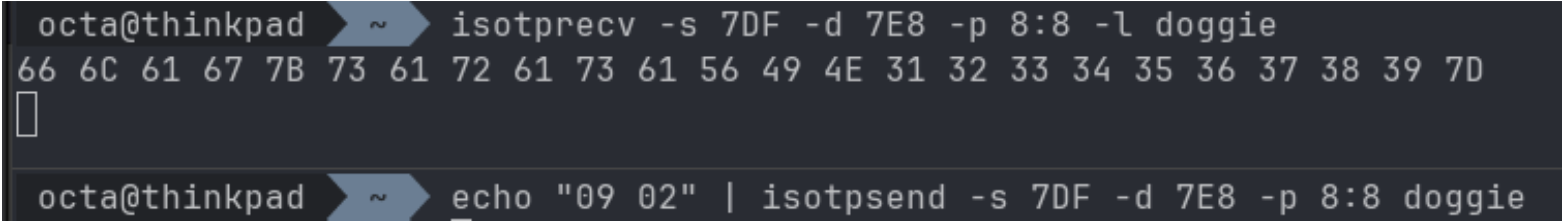

Example:

VIN Example
