Spoofing Attack

Description

The spoofing_attack enables injection of a forged CAN message immediately following the detection of a matching real message. It monitors the bus in real-time for a specified ID (with an optional data match) and transmits the spoofed data to override or augment the original frame. This is effective for altering sensor data (e.g., speed) or control signals to mislead ECUs.

Console Usage

  1. Access the main menu via the serial console.
  2. Add the attack to the plan with spoofing_attack <id> <spoofed_data> [ <match_data> ] [ --extended ].
    • Example: spoofing_attack 0x100 0x00,0x00,0x00 0x01,0x02 --extended
      • Targets ID 0x100 (29-bit extended) with spoofed data 0x00,0x00,0x00, triggered by a match with data starting 0x01,0x02.
  3. Verify the plan with list, then execute with attack (e.g., attack 10 for 10 iterations).
  4. Refer to help spoofing_attack for parameter details or troubleshooting.

Help

> help spoofing_attack

SUMMARY:
  spoofing_attack <id> <spoofed_data> [ <match_data> ] [ --extended ]

PARAMETERS:
  <id>
    CAN ID to match, in hex (e.g., 0x123, 0x12345678).

  <spoofed_data>
    Data bytes to spoof as comma-separated hex values (e.g., 0x10,0x20,0x30)

  <match_data>
    Match only after seeing a real message on the bus with the same ID and whose first data bytes match these comma‑separated hex values. Useful to target specific messages when multiple messages share the same ID.

  --extended
    Use if the target ID is an extended 29‑bit ID. Defaults to standard 11‑bit IDs.

DESCRIPTION:
Push to the plan a spoofing attack to injecting a forged message on the bus immediately after seeing a specific real message.

This works by monitoring the bus in real‑time and, when a matching message is detected (using <id> and optional <match_data>), EvilDoggie quickly sends your crafted <spoofed_data> message.

How It Works

As previously mentioned, the spoofing attack waits until a certain condition (ID, Data) matches the configured arguments and immediately afterward, it sends a new message.

In the following example, we will run an attack on the message with ID 0x100 where the first data byte equals 0x02, and we will send the same message with two additional data bytes 0x00 and 0x00. We do so with the following commands:

> spoofing_attack 0x100 0x2,0x0,0x0 0x2
> attack

Arguments:

  • 0x100: CAN ID
  • 0x2,0x0,0x0: data to spoof
  • 0x2: only trigger spoof when the first byte is 0x2

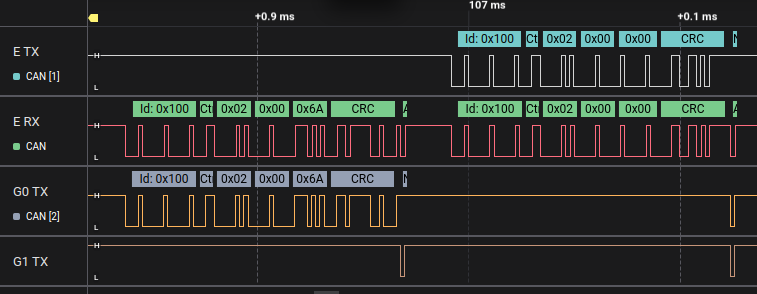

If we attach a logic analyzer, we could see something like this:

Spoofing Attack Logic Analyzer

Here, we have 3 devices involved, and the channels are:

  • E TX: evilDoggie TX
  • E RX: evilDoggie RX
  • G0 TX: Doggie 0 TX
  • G1 TX: Doggie 1 TX

We can see that G0 sends the message, and just after the End of Frame, E sends the new message.

Implementation

Like all the attacks, the Spoofing Attack is built on top of attack primitives, but the primitives may change depending on the attack arguments used. Let's see the primitives involved in the example:

  1. First warm up the attack machine
    • WarmUp
  2. Then try to match the id 0x100
    • MatchId
      • id: Standard(StandardId(0x100))
      • rtr: false
  3. If it matches, try to match the data with 0x02
    • MatchData
      • data: [2, 0, 0, 0, 0, 0, 0, 0]
      • match_size: 1
  4. Waits until the bus if free (until the End Of Frame)
    • WaitBusFree
  5. Send the spoofed message
    • SendMsg
      • id: Standard(StandardId(256))
      • data: Some([2, 0, 0, 0, 0, 0, 0, 0])
      • data_len: 3
      • rtr: false
      • force: false
