Double Receive Attack

Description

The double_receive_attack exploits CAN error handling by injecting timed error frames, causing the sender to retransmit while the receiver processes the initial frame. This results in duplicate message processing, potentially disrupting state machines or disabling features like airbags by confusing the ECU.

Console Usage

  1. Connect to the main menu via the serial console.
  2. Add the attack with double_receive_attack <id> <errors> [ <match_data> ] [ --extended ].
    • Example: double_receive_attack 0x200 3 0x10
      • Targets ID 0x200, injecting 3 errors after data starting with 0x10 to trigger a double receive.
  3. Check the plan with list, then execute with attack (e.g., attack 1 for one attempt).
  4. See help double_receive_attack for parameter specifics.

Help

> help double_receive_attack

SUMMARY:
  double_receive_attack <id> <errors> [ <match_data> ] [ --extended ]

PARAMETERS:
  <id>
    CAN ID to match, in hex (e.g., 0x123, 0x12345678).

  <errors>
    Number of consecutive error frames to inject.

  <match_data>
    Match only after seeing a real message on the bus with the same ID and whose first data bytes match these comma‑separated hex values. Useful to target specific messages when multiple messages share the same ID.

  --extended
    Use if the target ID is an extended 29‑bit ID. Defaults to standard 11‑bit IDs.



DESCRIPTION:
Configure a double receive attack that injects error frames with precise timing to cause the sender to retransmit a frame while the receiver still accepts the first one.

This results in the receiver processing the same message twice, which can confuse state machines or logic relying on single delivery.

How it works

This technique takes advantage of the fact that the sender and receiver rely on slightly different points of the CAN frame to confirm that the message was successfully sent. After the 6th bit of the EOF field in the CAN frame, the receiver already thinks the frame is valid and accepts it, but the sender waits until after the 7th bit to confirm transmission.

If you inject an error frame at exactly the right moment, the receiver will have already accepted the message, but the sender will think there was an error and resend it. The effect is that the receiver sees the same message twice, while the sender believes it has only sent it once.

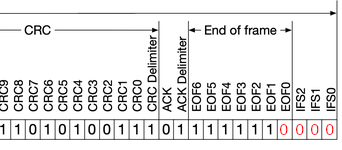

Double Receive Timin

For example, if we want to attack a message with id 0x102 and the first byte with 0x2 inserting only one error, we use the following command:

> double_receive_attack 0x102 1 0x2
> attack

If we see that in the logic analyzer we will see the following:

Double Receive Logic Analyzer

Here, we have 3 devices involved, and the channels are:

  • E TX: evilDoggie TX
  • E RX: evilDoggie RX
  • G0 TX: Doggie 0 TX
  • G1 TX: Doggie 1 TX

We can see that G0 sends the message, E injects an error frame in time and G0 sends the message again. Notice that G1 ACKs both messages.

Implementation

Like all the attacks, the Double Receive Attack is built on top of attack primitives, but the primitives may change depending on the attack arguments used. Let's see the primitives involved in the example:

  1. First warm up the attack machine
    • WarmUp
  2. Then try to match the id 0x102
    • MatchId
      • id: Standard(StandardId(0x102))
      • rtr: false
  3. If it matches, try to match the data with 0x02
    • MatchData
      • data: [2, 0, 0, 0, 0, 0, 0, 0]
      • match_size: 1
  4. Skipes the CRC and ACK fields
    • Wait
      • bits: 15
  5. It will now wait until the desired bit to change
    • SetBitstuffing
      • state: false
    • Wait
      • bits: 9
    • SetBitstuffing
      • state: true
  6. Sends the desired amount of error frames
    • SendError
      • amount: 1
