Doggie/evilDoggie Board - Faraday Edition

Introduction

The Faraday Doggie & evilDoggie Board is a professional-grade, dual-purpose CAN Bus adapter and research tool designed by Faraday in collaboration with Kalpa. This board offers a readymade, plug-and-play solution for CAN Bus analysis and security research. The board's design allows it to function as both a standard Doggie CAN Bus adapter and an evilDoggie research and testing tool, switching between modes via a hardware toggle.

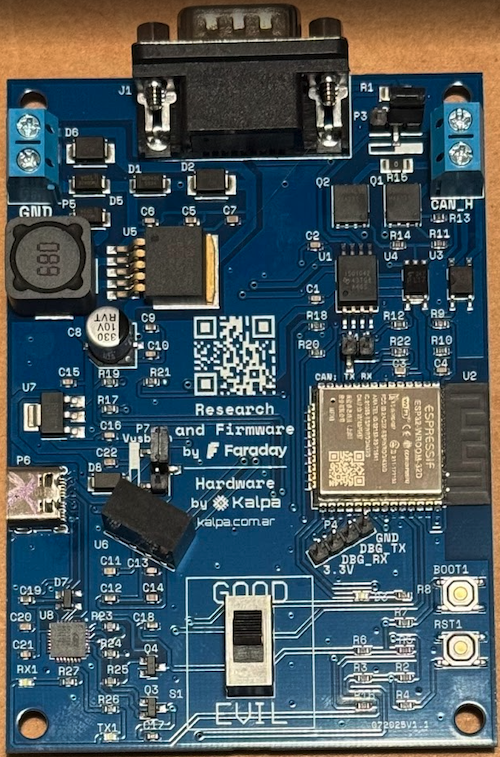

Faraday Board

Hardware

The board uses a ESP32-WROOM-32D microcontroler with 8 Mb of flash, allowing it to store both Doggie and evilDoggie firmwares simultaneously. The switch labelled Evil/Good can be used to switch betweeen the firmware images. The eye color provides visual confirmation of the selected firmware image (red for evil and blue for good).

CAN Bus Interface

The CAN communication stack comprises two critical components:

  • ESP32 internal CAN-compatible controller (TWAI - Two-Wire Automotive Interface)
  • External CAN tranceiver:
    • ISO1042DWVR Isolated CAN Transceiver
    • Galvanic isolation up to 2.5 kV for electrical protection
    • Enhanced ESD protection (±12 kV contact discharge)
    • Wide common-mode range (-12V to +12V) for automotive environments
    • Thermal shutdown protection and short-circuit immunity
    • Low electromagnetic emissions compliant with automotive EMC standards

Connectivity Options

CAN Network Connection:

  • Screw terminal blocks for internal bus connection or permanent installation
  • DB9 connector for standard automotive/industrial applications
  • DB9-to-OBD2 adapter compatibility for direct vehicle connection
  • Jumper-selectable 120Ω termination resistor

Host Connection:

  • USB-C connector with integrated USB-to-Serial bridge

Power Management System

Power Source Selection: - USB-C 5V Bus Power (Jumper in Vusb position) - Automotive 12V Rail (via OBD2 or terminal block. Jumper not in Vusb position) - External DC Supply (6V-24V via terminal block. Jumper not in Vusb position)

Advanced Features

Dominant Override Circuit:

  • Allows to force messages and custom states
  • Custom fast-switching transistor implementation
  • Essential for advanced security testing scenarios
  • Electronically controlled via firmware commands
Faraday Board Hardware

The hardware bill of materials and schematics are available in the repo's hardware directory.

How to flash it

In order to flash the board we need to follow the ESP32 Doggie and evilDoggie instructions to install the ESP32 and Rust dependencies.

After installing the dependencies, we need to build two binaries with the board disconnected:

$ DEFMT_LOG=off cargo esp32 --bin evil_doggie --no-default-features --features twai,faraday

$ DEFMT_LOG=off cargo esp32 --bin doggie --no-default-features --features twai,faraday

This commands are going to fail with Error: espflash::no_serial and thats ok, we want to build the binaries and not flash them.

Now that the binaries are builded, it's time to flash them together on the board:

$ espflash flash --flash-size 8mb --partition-table bootloader/partitions.csv --bootloader bootloader/bootloader.bin --target-app-partition test target/xtensa-esp32-none-elf/release/doggie
$ espflash flash --flash-size 8mb --partition-table bootloader/partitions.csv --bootloader bootloader/bootloader.bin --target-app-partition factory target/xtensa-esp32-none-elf/release/evil_doggie

And you are ready to use the Faraday Doggie & evilDoggie board!
